How high availability works in Memgraph

High availability (HA) in Memgraph ensures that the cluster can always serve queries, even when nodes fail. It is built on two foundations:

1. Replication - multiple data instances hold copies of the data.
2. Automatic failover - the system transparently promotes a new Main instance when needed.

A Memgraph HA cluster contains three types of instances:

• The MAIN instance on which the user can execute read and write queries.
• REPLICA instances that can only respond to read queries.
• COORDINATOR instances that manage the cluster state.

In HA documentation, MAIN and REPLICATE together are often referred to as data instances, because either one may become the Main during the cluster lifetime.

Coordinator instances do not store graph data and are therefore much lighter.

How Memgraph achieves High Availability

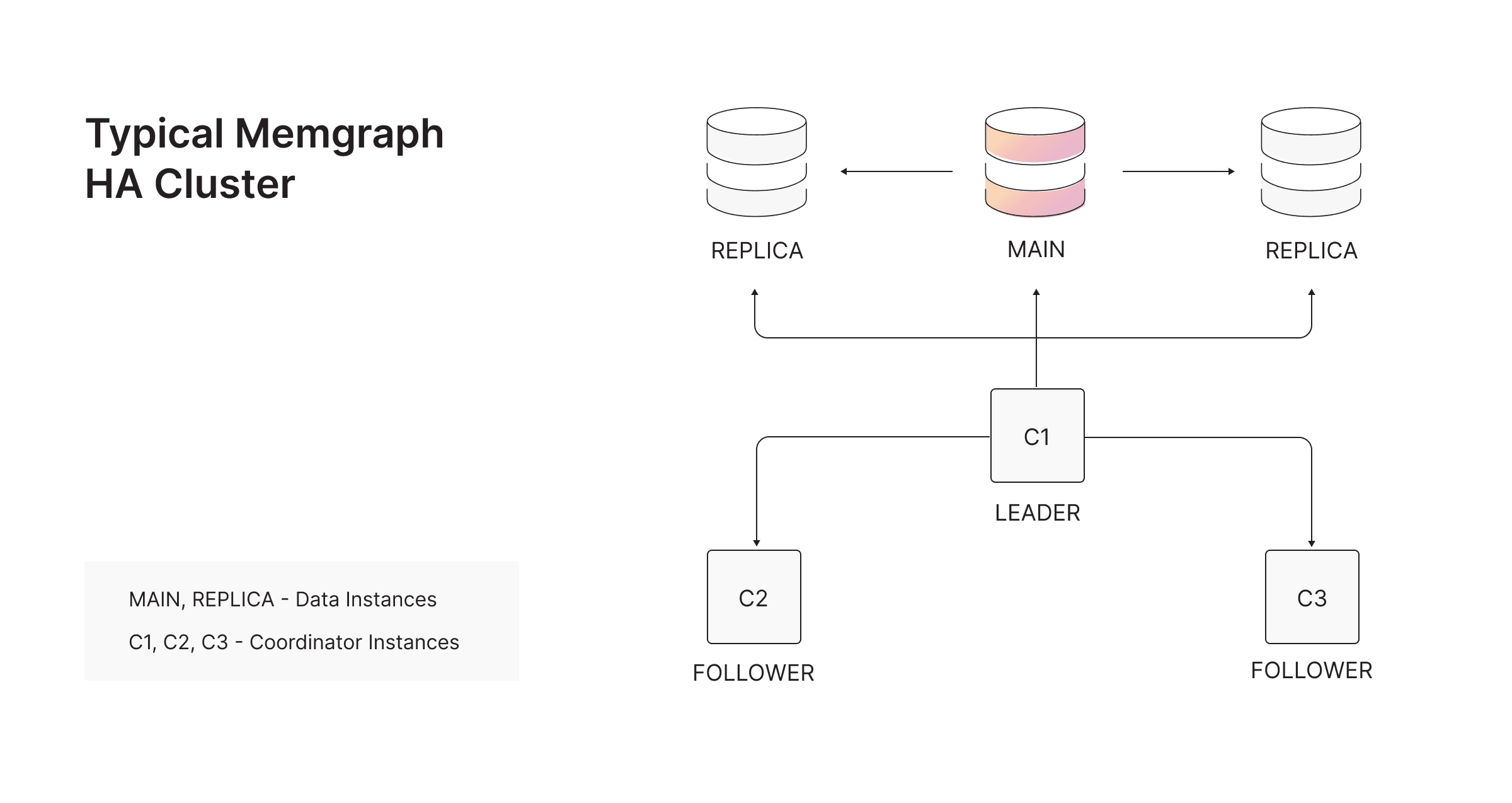

A typical highly available Memgraph cluster includes:

• 3 data instances (1 Main + 2 Replicas)
• 3 coordinators (1 Leader + 2 Followers)

The constraint for number coordinators is only that it needs to be an odd number of them, greater than 1 (3, 5, 7, …). Users can create more than 3 coordinators, but the replication factor (RF) of 3 is a de facto standard in distributed databases.

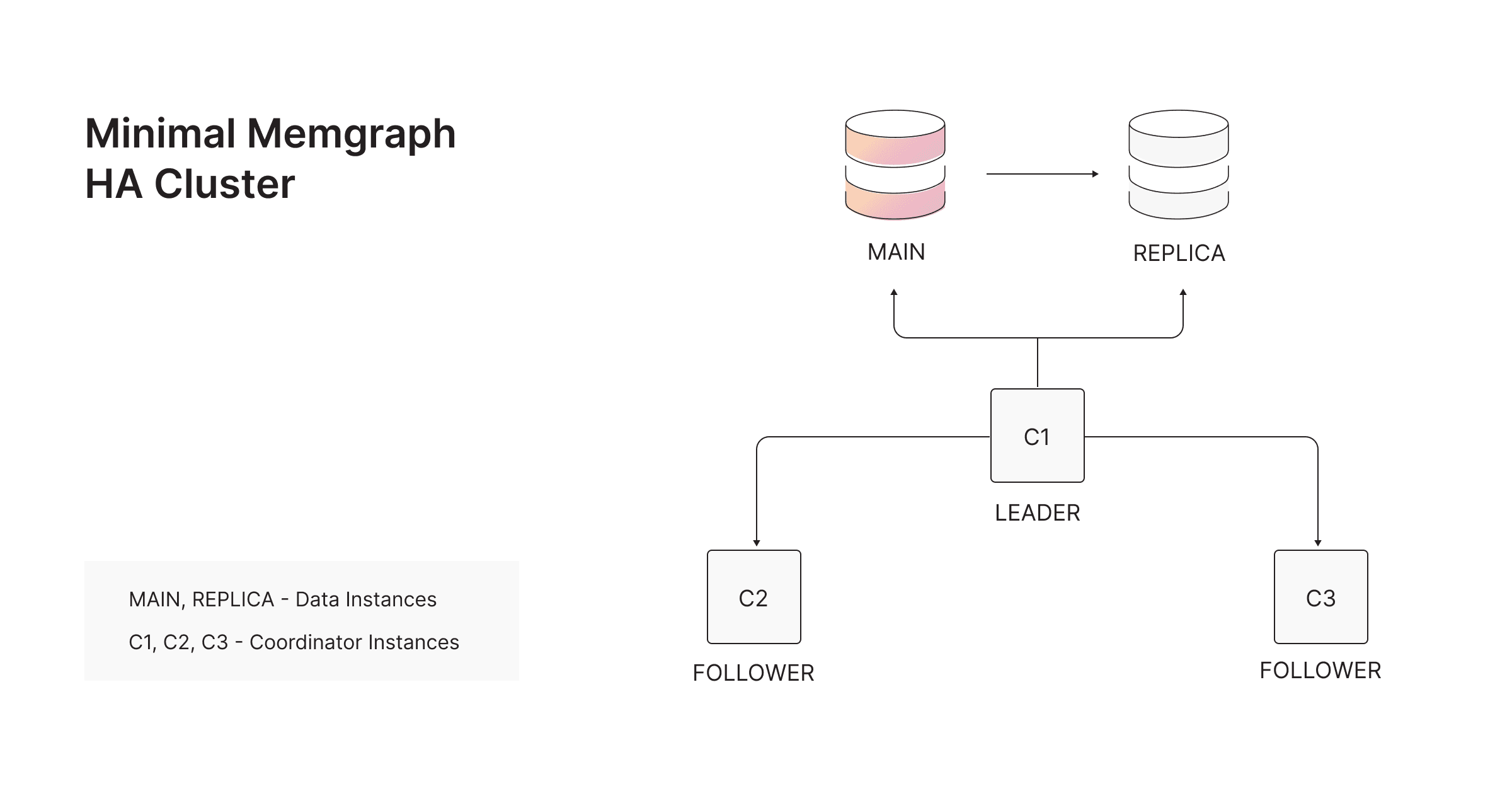

The minimum valid data-instance setup is:

• 1 Main
• 1 Replica

If the Main fails, a Replica is automatically promoted.

For achieving high availability, Memgraph uses the Raft consensus protocol for cluster coordination. Raft is easier to reason about than Paxos and widely adopted across distributed systems. As a design decision, Memgraph uses an industry-proven library NuRaft for the implementation of the Raft protocol.

Raft provides:

• Leader election among coordinator instances
• A replicated, durable cluster-management log
• Fault-tolerant decision-making via majority quorum

The coordinator leader ensures:

• Exactly one Main exists
• Replicas are correctly registered
• Failover is triggered when needed

Coordinators themselves are redundant, making cluster orchestration highly available.

Data instance implementation

The data instance is your usual Memgraph standalone instance, with one key flag added:

• --management-port - used to get the health state of the data instance from the leader coordinator

Coordinator instance implementation

The coordinator is a small orchestration instance which is shipped in the same Memgraph binary as the data instance itself. For the system to be aware that its role is COORDINATOR, the user needs to specify four flags:

• --coordinator-id - serves as a unique identifier of the coordinator
• --coordinator-port - used for synchronization and log replication between coordinators
• --coordinator-hostname - used on followers to ping the leader on the correct IP address (or FQDN/DNS name)
• --management-port - used to get the health state of the respective coordinator instance from the leader coordinator

When deploying coordinators to servers, you can use the instance of almost any size. Instances of 4GiB or 8GiB will suffice since coordinators’ job mainly involves network communication and storing Raft metadata. Coordinators and data instances can in theory be deployed on same servers (pairwise) but from the availability perspective, it is better to separate them physically.

RPC communication in the cluster

RPC (Remote Procedure Call) is a protocol for executing functions on a remote system. RPC enables direct communication in distributed systems and is crucial for replication and high availability tasks.

RPC (Remote Procedure Calls) are used for:

• Replication
• Cluster orchestration
• Health monitoring
• Failover triggers

Below is a cleaned-up categorization.

Coordinator → Coordinator RPCs

Coordinator → Data Instance RPCs

All of the following messages were sent by the leader coordinator.

Main → Replica RPCs

All of the following messages were sent by the Main instance.

RPC timeouts

Default RPC timeouts

For the majority of RPC messages, Memgraph uses a default timeout of 10s. This is to ensure that when sending a RPC request, the client will not block indefinitely before receiving a response if the communication between the client and the server is broken. The list of RPC messages for which the timeout is used is the following:

RPC timeout during replication of data

For RPC messages which are sending the variable number of storage deltas — PrepareCommitRpc, CurrentWalRpc, and WalFilesRpc — it is not practical to set a strict execution timeout, as the processing time on the replica side is directly proportional to the number of deltas being transferred. To handle this, the replica sends periodic progress updates to the main instance after processing every 100,000 deltas. Since processing 100,000 deltas is expected to take a relatively consistent amount of time, we can enforce a timeout based on this interval. The default timeout for these RPC messages is 30 seconds, though in practice, processing 100,000 deltas typically takes less than 3 seconds.

RPC timeout during replica recovery

SnapshotRpc is also a replication-related RPC message, but its execution time is tracked a bit differently from RPC messages shipping deltas. The replica sends an update to the main instance after completing 1,000,000 units of work. The work units are assigned as follows:

• Processing nodes, edges, or indexed entities (label index, label-property index, edge type index, edge type property index) = 1 unit
• Processing a node inside a point or text index = 10 units
• Processing a node inside a vector index (most computationally expensive) = 1,000 units

With this unit-based tracking system, the REPLICA is expected to report progress approximately every 2–3 seconds. Given this, a timeout of 60 seconds is set to avoid unnecessary network instability while ensuring responsiveness. On every report of the progress by the REPLICA, the timeout of 60 seconds will be restarted, as the state of recovery is considered to be stable.

Except for timeouts on read and write operations, Memgraph also has a timeout of 5s for sockets when establishing a connection. Such a timeout helps in having a low p99 latencies when using the RPC stack, which manifests for users as smooth and predictable network communication between instances.

In the table below, we have the full outline of the RPC messages that are sent in the cluster to ensure high availability, with timeouts.

Automatic failover

Automatic failover is driven by periodic health checks performed by the leader coordinator on all data instances. An instance is considered alive if it responds to these checks; if it does not, it is marked as down.

When a Replica goes down

If a REPLICA instance goes down, it will always rejoin the cluster as a REPLICA once it becomes healthy again. No failover action is required.

When the Main goes down

If the MAIN instance is detected as down, the coordinator may initiate a failover to select a new MAIN from the set of alive REPLICAs.

The failover process works as follows:

1. The coordinator selects one of the alive replicas as the new MAIN candidate.
2. It records this decision in the Raft log.
3. On the next heartbeat to the selected replica, the coordinator sends an RPC request (PromoteToMainReq) instructing it to promote itself from REPLICA to MAIN and providing information about the other replicas it should replicate to.
4. Once the promotion succeeds, the new MAIN begins replicating data to the other instances and starts accepting write queries.

Instance health checks

The coordinator performs health checks on each instance at a fixed interval, configured with --instance-health-check-frequency-sec. An instance is not considered down until it has failed to respond for the full duration specified by --instance-down-timeout-sec.

Example

If you set:

• --instance-health-check-frequency-sec=1
• --instance-down-timeout-sec=5

…the coordinator will send a health check RPC (StateCheckRpc) every second. An instance is marked as down only after five consecutive missed responses (5 seconds ÷ 1 second).

Usually, the health check reports instantly, and only in severe cases of network failure, it will timeout in 30 seconds.

Depending on the data instance role, we have 2 scenarios:

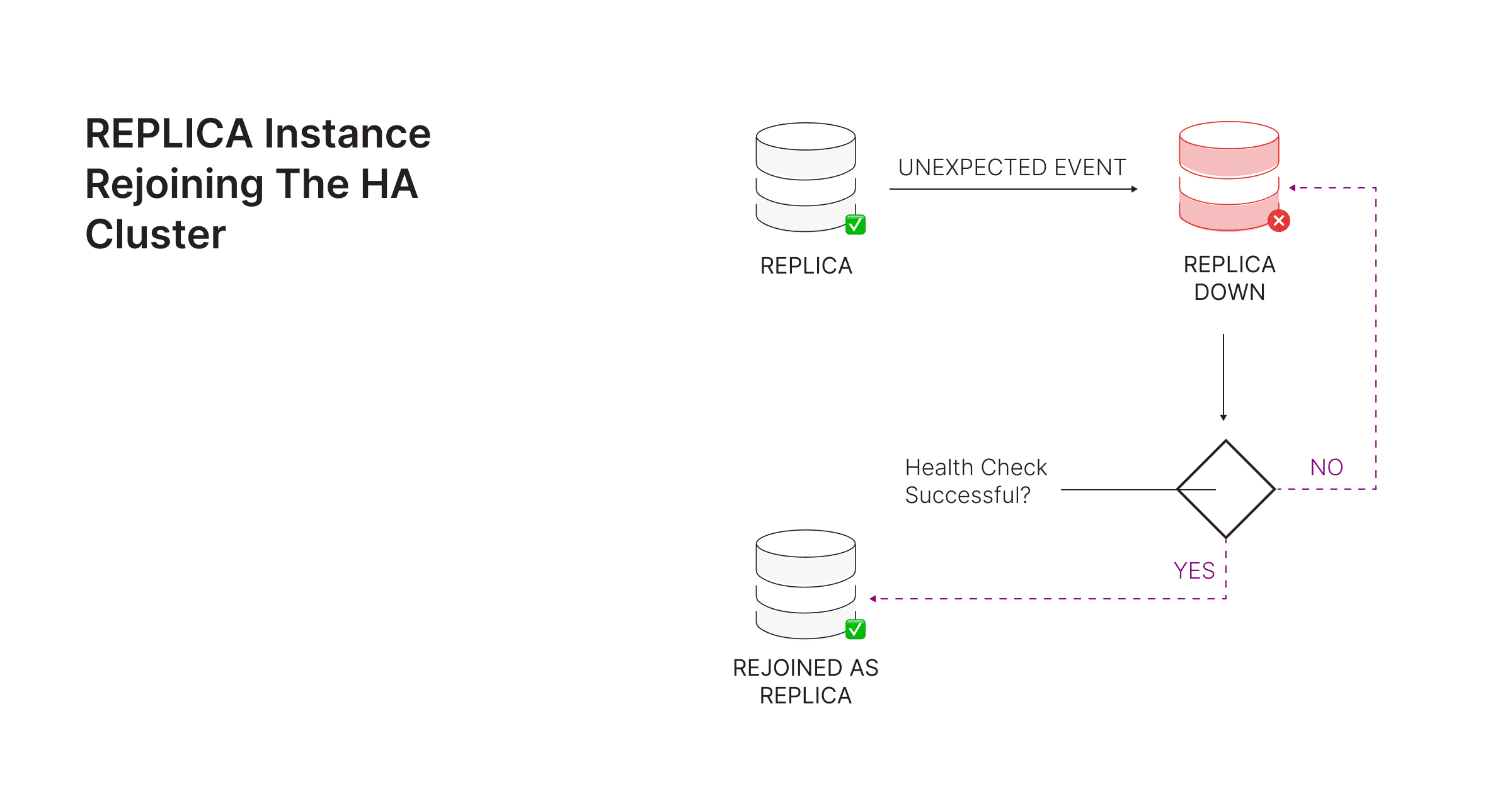

1. Replica instance fails to respond

If a REPLICA fails to respond:

• The leader coordinator simply retries on the next scheduled health check.
• Once the instance becomes reachable again, it always rejoins the cluster as a REPLICA.

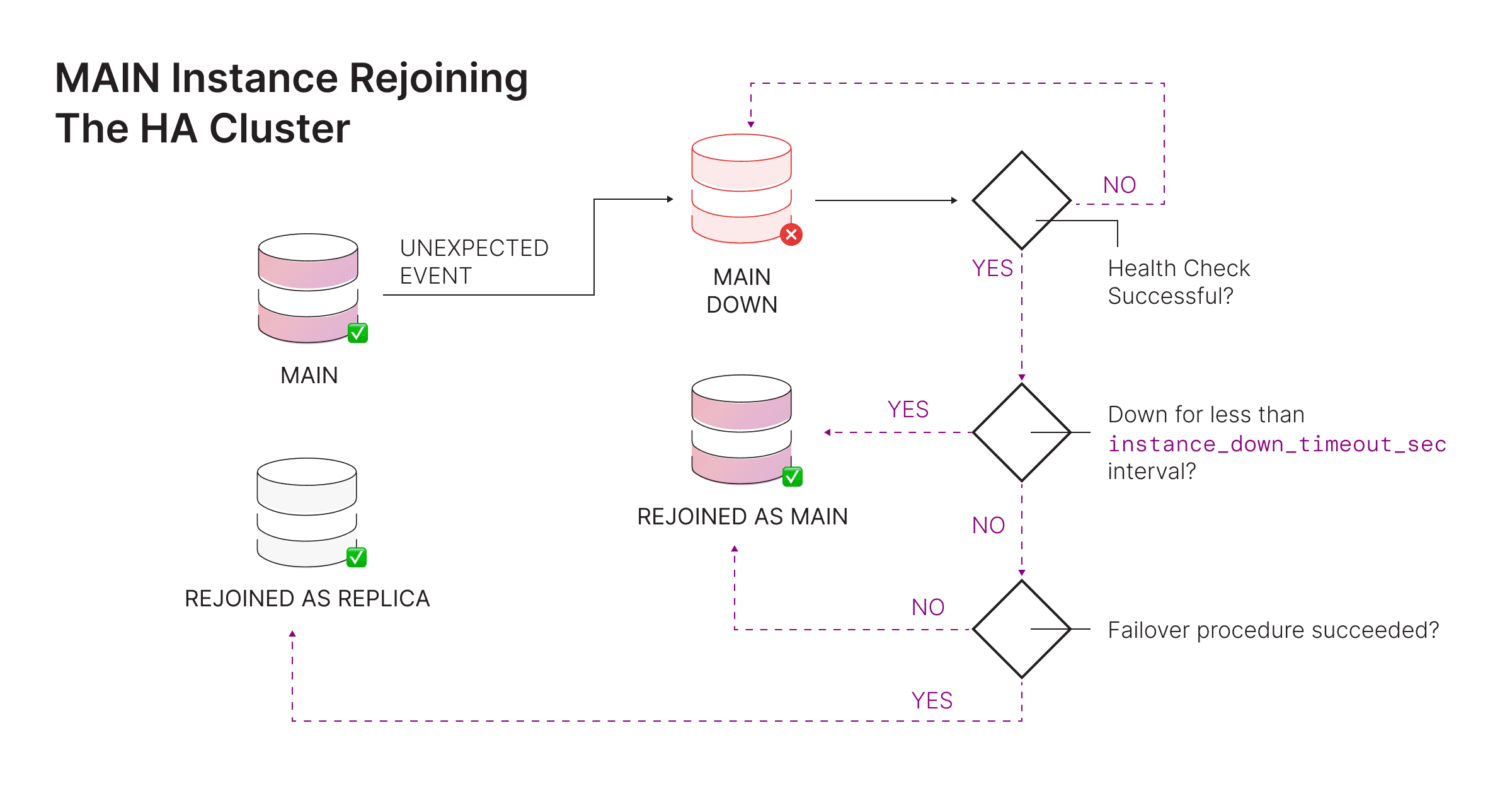

2. Main instance fails to respond

If the MAIN instance fails to respond, two cases apply:

• Down for less than --instance-down-timeout-sec The instance is still considered alive and will rejoin as MAIN when it responds again.
• Down for longer than --instance-down-timeout-sec The coordinator initiates the failover procedure. What the old MAIN becomes afterward depends on the outcome:
  • Failover succeeds: the old MAIN rejoins as a REPLICA.
  • Failover fails: the old MAIN retains authority and rejoins as MAIN when it becomes reachable.

Choosing the new MAIN

During failover, the coordinator must select a new main instance from available replicas, as some may be offline. The leader coordinator queries each live replica to retrieve the committed transaction count for every database.

The selection algorithm prioritizes data recency using a two-phase approach:

1. Database majority rule: The coordinator identifies which replica has the highest committed transaction count for each database. The replica that leads in the most databases becomes the preferred candidate.
2. Total transaction tiebreaker: If multiple replicas tie for leading the most databases, the coordinator sums each replica’s committed transactions across all databases. The replica with the highest total becomes the new main.

This approach ensures the new main instance has the most up-to-date data across the cluster while maintaining consistency guarantees.

Old MAIN rejoining

When the old MAIN instance comes back online, it cannot resume as MAIN automatically. The coordinator keeps track of which instance most recently served as MAIN and ensures a controlled transition.

To demote the old MAIN to a REPLICA, the leader coordinator sends two RPC requests in order:

1. DemoteMainToReplicaReq - instructs the old MAIN to demote itself to a REPLICA.
2. Store current MAIN UUID - updates the old instance (now a REPLICA) with the machine UUID of the current MAIN so it can correctly begin replication.

After these steps, the old MAIN fully reenters the cluster as a REPLICA.

Ensuring replicas follow the correct MAIN

Each REPLICA stores the UUID of the MAIN instance it should follow. In certain failure scenarios, such as a network partition, the MAIN may still be able to communicate with a REPLICA even though the coordinator cannot reach the MAIN. From the coordinator’s perspective, the MAIN appears down, while from the REPLICA’s perspective, it appears alive.

This situation can lead to split-brain behavior, where failover procedure is triggered and multiple MAINs briefly exist, with replicas potentially following different leaders.

To prevent this, the coordinator manages MAIN UUIDs carefully:

• When a new MAIN is selected, the coordinator generates a new, unique MAIN UUID that no existing MAIN has.
• The new MAIN adopts this UUID when promoted, ensuring replicas can reliably distinguish which MAIN is authoritative.

If a REPLICA goes down and later rejoins, the MAIN may have changed during its absence. To ensure the REPLICA follows the correct MAIN, the coordinator sends a SwapMainUUIDRpc request, updating the REPLICA with the UUID of the current MAIN.

This guarantees all REPLICAs consistently replicate from the correct leader and prevents divergence across the cluster.

Replication scenarios

Force sync of data

Earlier, we explained how Memgraph selects the most up-to-date alive instance during failover.

However, a replica that was down at the time of failover might actually hold more recent data than any of the replicas that were online. When this happens, Memgraph performs a force sync of that REPLICA.

A force sync occurs when a previously unreachable instance had a more up-to-date state than the replica promoted to MAIN. Once that instance rejoins the cluster, it undergoes a controlled recovery process:

• The REPLICA resets its storage.
• It receives all committed transactions from the current MAIN to rebuild an accurate and consistent state.
• Its original durability files are preserved in .old directories inside data_directory/snapshots and data_directory/wal. These allow administrators to attempt manual recovery if necessary. The .old directory is reused on subsequent recoveries, meaning only one backup copy is kept at a time.

The possibility of data loss during failover depends on the configured replication mode:

SYNC (default)

• Provides strong availability guarantees but allows a non-zero RPO (loss of committed data).
• This can occur because the replica promoted to MAIN may not have received the latest commits from the old MAIN before failure.
• The design prioritizes keeping the MAIN writable for as long as possible.

ASYNC

• Similar to SYNC, but with an even higher chance of data loss because the MAIN continues committing freely regardless of replica status.

STRICT_SYNC

• Ensures zero data loss under all failover scenarios.
• Achieves this by using a two-phase commit protocol, at the cost of reduced throughput.

Actions on follower coordinators

Follower coordinators operate in a restricted mode. They can only execute the SHOW INSTANCES command.

All state-changing operations are disabled on followers, including:

• Registering data instances
• Unregistering data instances
• Demoting an instance
• Promoting an instance to MAIN
• Forcing a cluster state reset

These operations are permitted only on the leader coordinator.

Instance restarts

Restarting data instances

Both MAIN and REPLICA instances may fail and later restart.

• When a REPLICA instance comes back online, it uses the MAIN UUID provided by the coordinator (via the SwapMainUUIDReq message) to determine which MAIN to follow. This synchronization happens automatically once the coordinator’s health check (“ping”) succeeds.

• When the MAIN instance restarts, it is initially prevented from accepting write operations. Writes become allowed only after the coordinator confirms the instance’s state and sends an EnableWritingOnMainRpc message.

This ensures that instances safely rejoin the cluster without causing inconsistencies.

Restarting coordinator instances

If a coordinator instance crashes and is restarted, it does not lose any state. All coordinator metadata, RAFT logs and RAFT snapshots, is persisted on durable storage, ensuring full recovery on restart.

More details are available in the section on RAFT implementation.

RAFT implementation

NuRaft persists all critical RAFT state to durable storage by default. This includes:

• RAFT logs
• RAFT snapshots
• Cluster connectivity metadata

Persisting connectivity information is essential. Without it, a coordinator could not safely rejoin the cluster after a restart.

Information about logs and snapshots is stored under one RocksDB instance in the high_availability/raft_data/logs directory stored under the top-level --data-directory folder. All the data stored there is recovered in case the coordinator restarts.

Data about other coordinators is recovered from the high_availability/raft_data/network directory stored under the top-level --data-directory folder. When the coordinator rejoins, it will reestablish the communication with other coordinators and receive updates from the current leader.

First start

When coordinators start for the first time, each initializes its logs and network durability stores. From that moment on:

• Every RAFT log entry sent to a coordinator is also written to disk.
• The server configuration is updated whenever a new coordinator joins.
• Logs are generated for all user actions and failover-related operations.
• RAFT snapshots are created every N log entries (currently every 5 logs).

This design ensures that the coordinator can reliably recover its full RAFT state at any time, preserving both consistency and cluster membership information.

Restart of coordinator

In case of the coordinator’s failure, on the restart, it will read information about other coordinators stored under high_availability/raft_data/network directory.

From the network directory we will recover the server state before the coordinator stopped, including the current term, for whom the coordinator voted, and whether election timer is allowed.

It will also recover the following server config information:

• other servers, including their endpoints, id, and auxiliary data
• ID of the previous log
• ID of the current log
• additional data needed by nuRaft

The following information will be recovered from a common RocksDB logs instance:

• current version of logs durability store
• snapshots found with snapshot_id_ prefix in database:
  • coordinator cluster state - all data instances with their role (main or replica), all coordinator instances and UUID of main instance which replica is listening to
  • last log idx
  • last log term
  • last cluster config
• logs found in the interval between the start index and the last log index
  • data - each log holds data on what has changed since the last state
  • term - nuRAFT term
  • log type - nuRAFT log type

Handling durability errors

If snapshots are not correctly stored, the exception is thrown and left for the nuRAFT library to handle the issue. Logs can be missed and not stored since they are compacted and deleted every two snapshots and will be removed relatively fast.

Memgraph throws an error when failing to store cluster config, which is updated in the high_availability/raft_data/network folder. If this happens, it will happen only on the first cluster start when coordinators are connecting since coordinators are configured only once at the start of the whole cluster. This is a non-recoverable error since in case the coordinator rejoins the cluster and has the wrong state of other clusters, it can become a leader without being connected to other coordinators.

Recovering from errors

Distributed systems can fail in many different ways. Memgraph is designed to be resilient to network failures, omission faults, and independent machine failures. However, like most systems based on Raft, it does not tolerate Byzantine failures.

To understand how Memgraph behaves under failure, it is useful to consider the Recovery Time Objective (RTO) - the maximum acceptable duration for which an instance or cluster can be unavailable.

Memgraph clusters contain two categories of instances - coordinators and data instances and their failure scenarios must be examined separately.

Coordinator failures

Raft requires a majority of coordinators to remain alive to continue operating.

• With one coordinator down in a 3-node Raft cluster (RF = 3), the cluster still has quorum, so RTO = 0 - the system remains fully available.
• With two or more coordinators down, quorum is lost. In this case, RTO depends solely on how long it takes for enough coordinators to come back online.

Replica failures

A replica’s failure has different consequences depending on its replication mode:

1. STRICT_SYNC replica fails

• Writes on the MAIN are blocked until the replica becomes available again.
• Reads remain allowed on MAIN and other replicas.

2. SYNC or ASYNC replica fails

• The MAIN continues accepting writes.
• Reads remain available everywhere.

Thus, only STRICT_SYNC replicas can directly impact write availability.

Main instance failure

When the MAIN instance becomes unavailable, the failure is handled by the leader coordinator using two user-configured parameters:

• --instance-health-check-frequency-sec: how often health checks are sent
• --instance-down-timeout-sec: how long an instance must remain unresponsive before it is considered down

Once the coordinator gathers enough evidence that the MAIN is down, it begins a failover procedure using a small number of RPC messages. The exact time required depends on network latency and instance proximity.

If the selected replica (promoted to MAIN) has the most recent committed data, failover completes with zero data loss.

Raft configuration parameters

Several RAFT-related settings play a key role in maintaining stable cluster behavior.

The leader coordinator sends heartbeat messages to all follower coordinators once per second. These heartbeats allow followers to confirm that the leader is healthy.

This timing interacts closely with the leader election timeout, which is a randomized interval between 2000 ms and 4000 ms. A follower starts a new election only if it does not receive a heartbeat within this timeout window.

Additionally, the leadership expiration is fixed at 2000 ms, ensuring that the cluster cannot enter a state where multiple leaders coexist.

These values are chosen to allow the cluster to tolerate minor and temporary network delays without triggering unnecessary leadership changes, improving overall stability.
