Graph schema
If you need to check the data model of the data currently in the database, you can generate a graph schema that will show all the node types and relationships between them.
By selecting a certain node or relationship type, Memgraph Lab will provide information about the current number of nodes or relationships of that type, as well as the percentage of existence of each property across the nodes and relationships of that type.
If you’re connected to a Memgraph instance running with the
--schema-info-enabled configuration
flag, you’ll see the types for each
node and relationship property.
Generate a graph schema

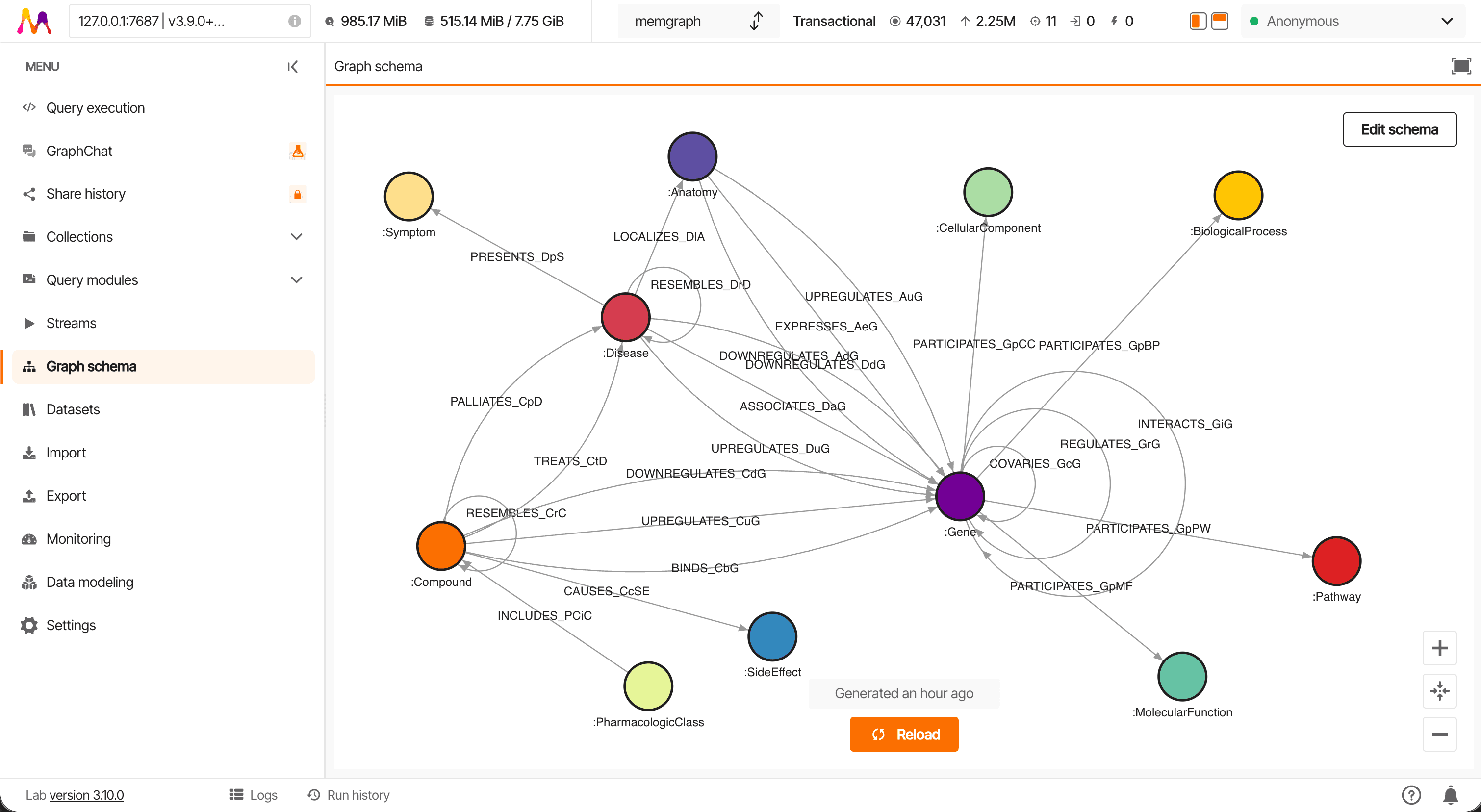

To generate the graph schema, navigate to the Graph schema tab in the sidebar and click on the Reload button. Memgraph will analyze the entire dataset and create a visual representation of the data model. This includes:
- All detected node labels and relationship types.
- The connections between different node types based on existing relationships.
- A preview of how entities are structured in your graph.
This is especially useful when you’re working with new datasets or reverse-engineering an unknown data structure.
Inspect properties

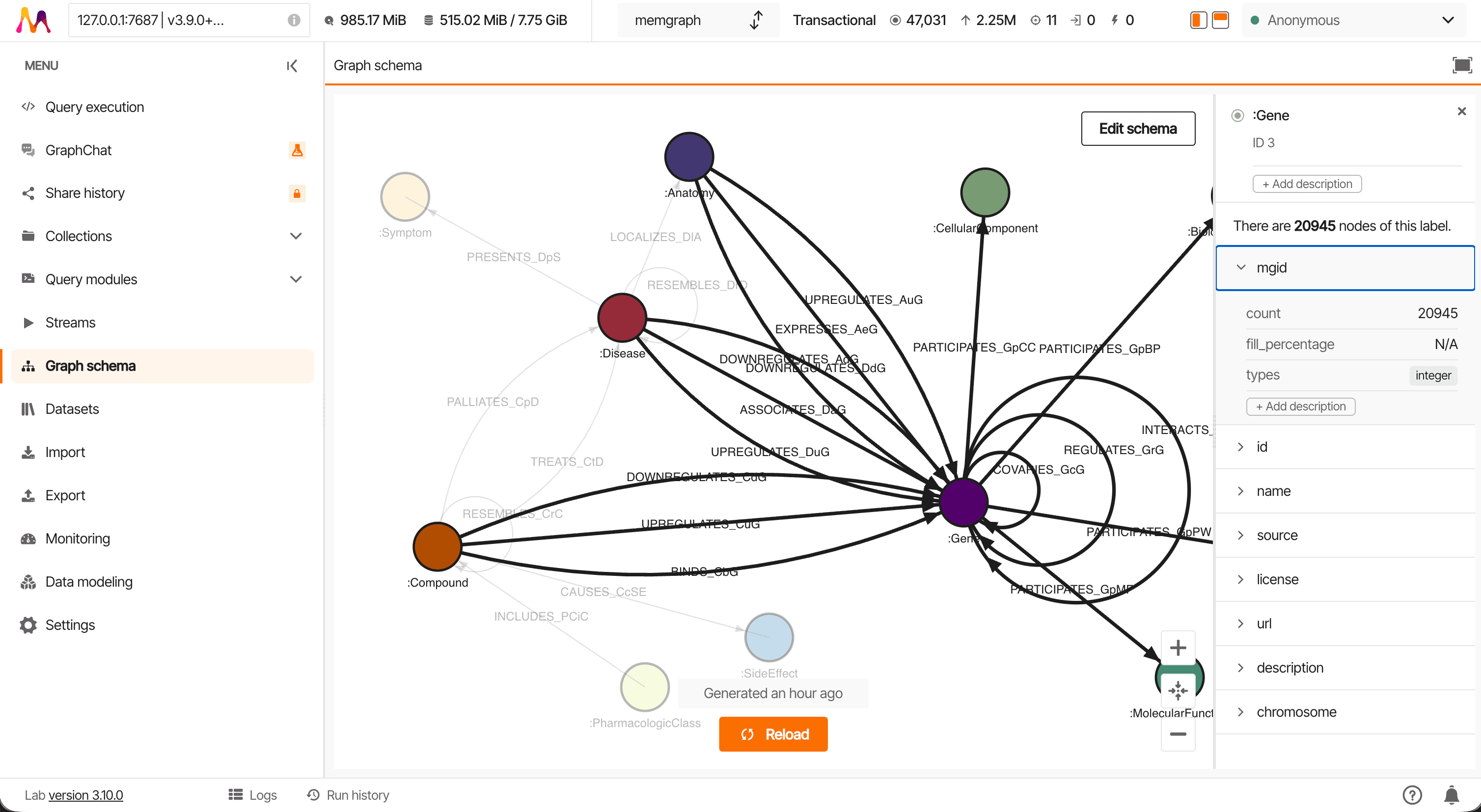

Once the schema is generated, you can click on any node or relationship type in the graph to inspect its details. Lab displays:
- The total number of occurrences in the database.
- A breakdown of all the properties associated with that node or relationship type.
- The percentage of presence of each property (i.e., how often it appears across all instances).
This helps you understand which properties are consistently present, which ones might be optional or only apply in certain contexts and whether your data is uniform or varies between entries.
Descriptions (Memgraph & Lab 3.10+)

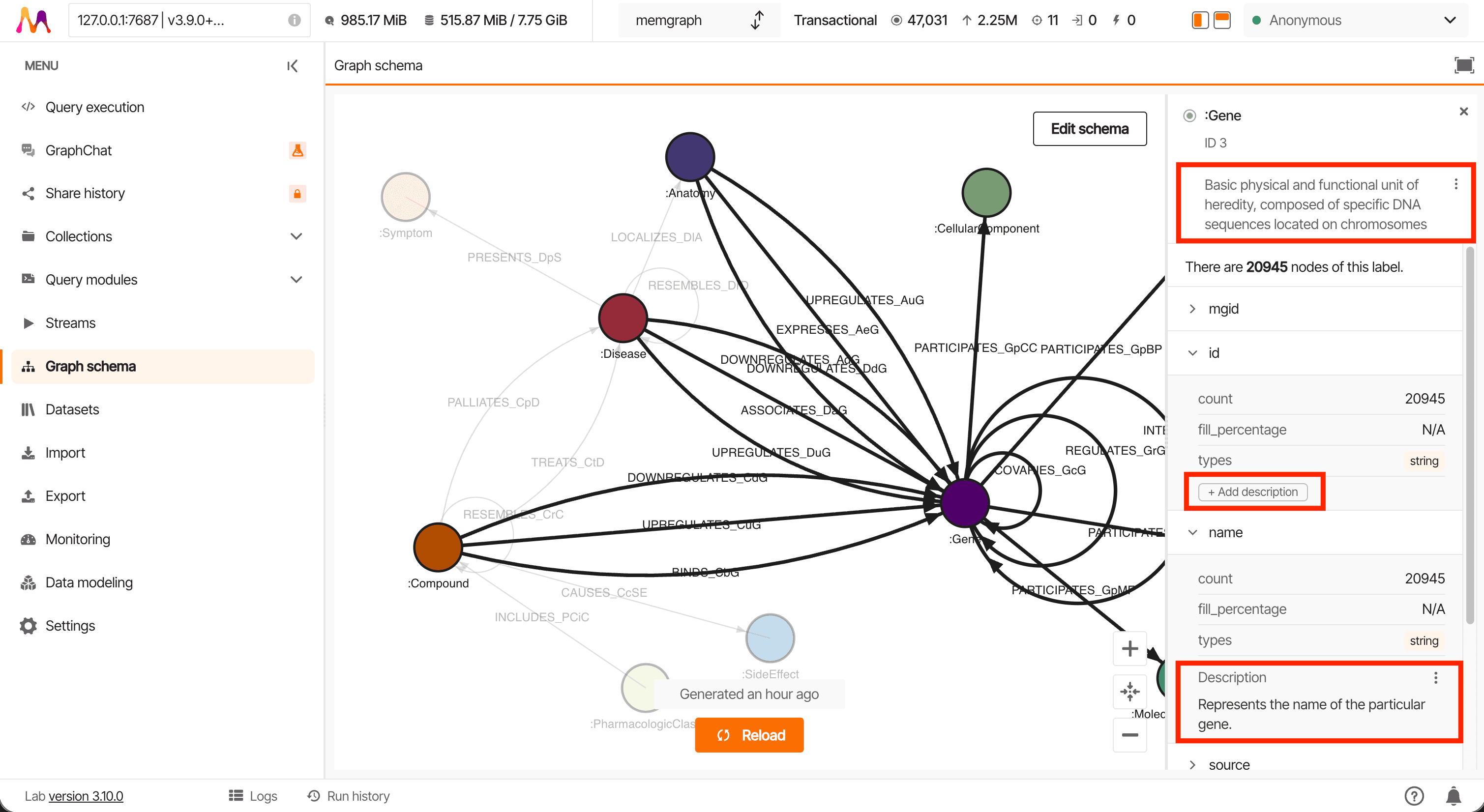

You can see and edit descriptions on node labels, relationship types, and their properties directly within the schema view.
Availability:
- Memgraph: version 3.10 and above
- Memgraph Lab: version 3.10 and above
This feature helps you document your data model by adding helpful notes or clarifications to any node label, relationship type, or property. Descriptions you add are saved and displayed to anyone viewing the schema, making collaboration and understanding of the graph structure easier. It’s a powerful way to document your graph data model and ensure all users share the same up-to-date understanding of your schema.

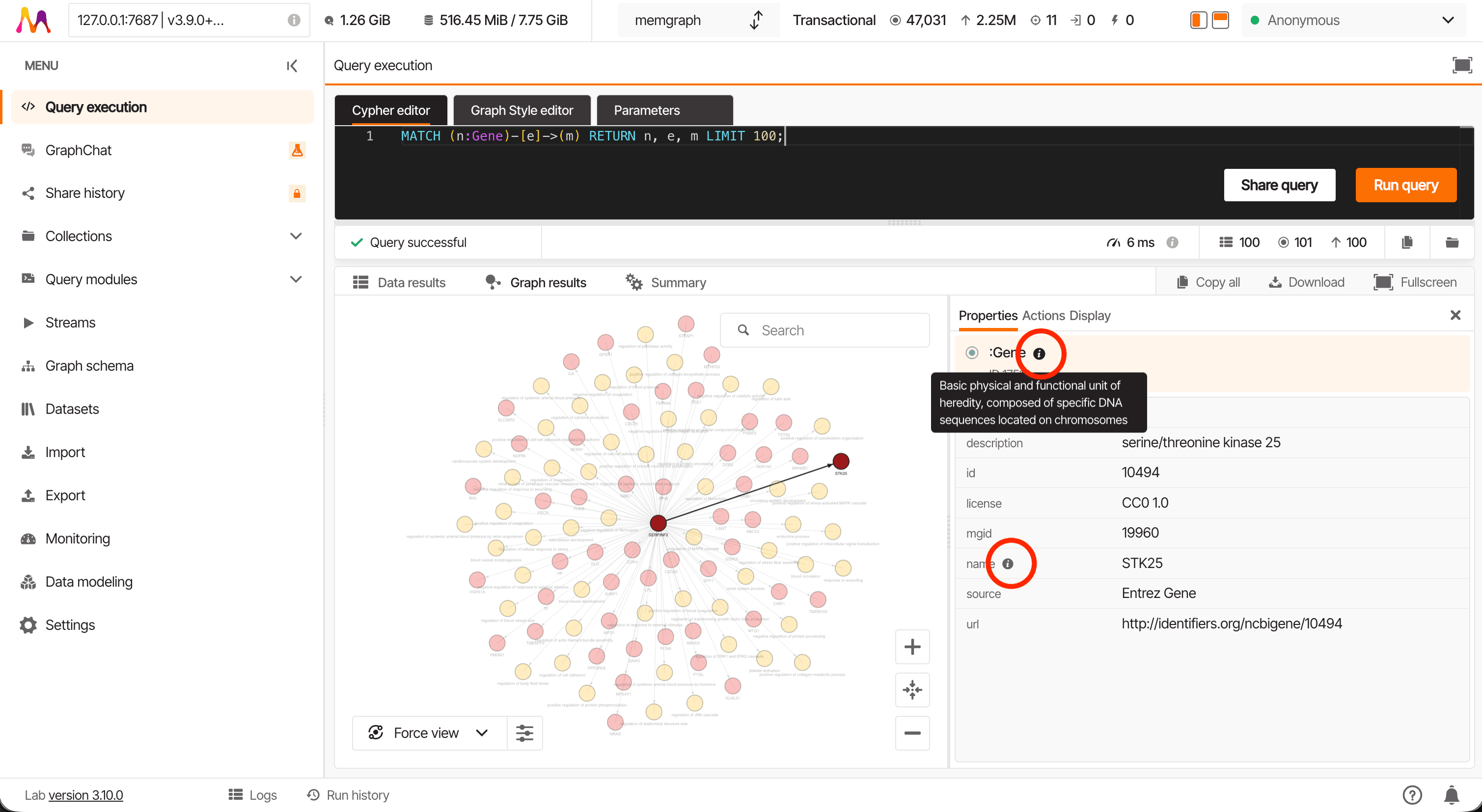

Tip: If you’ve added descriptions to node labels, relationship types, or properties, you’ll also see them when running regular Cypher queries and viewing the results in the graph view—not just in the schema tab. This is useful for providing extra context while exploring data, as the descriptions appear directly alongside the schema elements in your query results.
