Install Memgraph with Docker

Docker (opens in a new tab) is a service that uses OS-level virtualization to deliver software in packages that are called containers (opens in a new tab).

Memgraph uses Docker because it is:

  • Flexible
  • Lightweight
  • Portable - you can build locally or deploy to the cloud
  • Runs on all platforms - Windows, Linux and macOS
  • Deploys in Kubernetes

Memgraph bundles the database along with various analytical tools into distinct Docker images. If you're new to Memgraph or you're in a developing stage, we recommend using the memgraph-platform image. It includes:

  • Memgraph - the database that holds your data
  • Memgraph Lab - web interface for running queries and visualizing graph data
  • mgconsole - command-line interface for running queries
  • MAGE - graph algorithms and modules library

Once you're ready to go to production you can choose to use other Docker images, for example, the memgraph-mage Docker image that includes the database and the algorithms, or run the database only, using the memgraph image.

Install Memgraph Platform

Install Docker Desktop

Install Docker Desktop (opens in a new tab) by following the instructions available on their site.

Install and run Memgraph

Open a terminal and use the following command:

docker run -p 7687:7687 -p 7444:7444 -p 3000:3000 --name memgraph memgraph/memgraph-platform

After downloading the image, Memgraph will install and if the installation was successful, you should see a message similar to the following:

C:\Users\Vlasta>docker run -p 7687:7687 -p 7444:7444 -p 3000:3000 --name memgraph memgraph/memgraph-platform
2023-08-29 09:02:59,833 INFO Included extra file "/etc/supervisor/programs/lab.conf" during parsing
2023-08-29 09:02:59,834 INFO Included extra file "/etc/supervisor/programs/memgraph.conf" during parsing
2023-08-29 09:02:59,834 INFO Set uid to user 0 succeeded
2023-08-29 09:02:59,842 INFO supervisord started with pid 1
2023-08-29 09:03:00,845 INFO spawned: 'memgraph' with pid 7
2023-08-29 09:03:00,848 INFO spawned: 'lab' with pid 8
You are running Memgraph v2.10.1
To get started with Memgraph, visit https://memgr.ph/start
[2023-08-29 09:03:01.034] [memgraph_log] [warning] Invalid license key string. To use Enterprise features please set it to a valid string using the following query:
SET DATABASE SETTING "enterprise.license" TO "your-license-key"
[2023-08-29 09:03:01.333] [memgraph_log] [warning] No snapshot or WAL file found. For more details, visit https://memgr.ph/durability.
[2023-08-29 09:03:01.333] [memgraph_log] [warning] Replication configuration will NOT be stored. When the server restarts, replication state will be forgotten.
2023-08-29 09:03:02,334 INFO success: memgraph entered RUNNING state, process has stayed up for > than 1 seconds (startsecs)
2023-08-29 09:03:02,335 INFO success: lab entered RUNNING state, process has stayed up for > than 1 seconds (startsecs)
[2023-08-29 09:03:02.803] INFO: [lab] Lab is running at http://localhost:3000 in platform mode
DGL backend not selected or invalid.  Assuming PyTorch for now.
<frozen importlib._bootstrap>:228: RuntimeWarning: scipy._lib.messagestream.MessageStream size changed, may indicate binary incompatibility. Expected 56 from C header, got 64 from PyObject
[2023-08-29 09:03:09.257] [memgraph_log] [error] Unable to load module "/usr/lib/memgraph/query_modules/libmgclient.so"; /usr/lib/memgraph/query_modules/libmgclient.so: undefined symbol: mgp_init_module. For more details, visit https://memgr.ph/modules.
[2023-08-29 09:03:09.542] [memgraph_log] [error] Unable to load module "/usr/lib/memgraph/query_modules/example_cpp.so"; /usr/lib/x86_64-linux-gnu/libstdc++.so.6: version `GLIBCXX_3.4.29' not found (required by /usr/lib/memgraph/query_modules/example_cpp.so). For more details, visit https://memgr.ph/modules.
[2023-08-29 09:03:09.542] [memgraph_log] [warning] Using non-secure Bolt connection (without SSL). For more details, visit https://memgr.ph/ssl.

Memgraph will start listing the logs, and don't worry about the inital errors and warnings as at this point, they are of informative nature.

Connect to the instance

You can connect to the Memgraph instance using the command-line interface mgconsole by running the following command in a new terminal:

docker exec -it memgraph mgconsole

When the mgconsole starts, you can query the database:

C:\Users\Vlasta>docker exec -it memgraph mgconsole
mgconsole 1.3
Connected to 'memgraph://127.0.0.1:7687'
Type :help for shell usage
Quit the shell by typing Ctrl-D(eof) or :quit
memgraph>

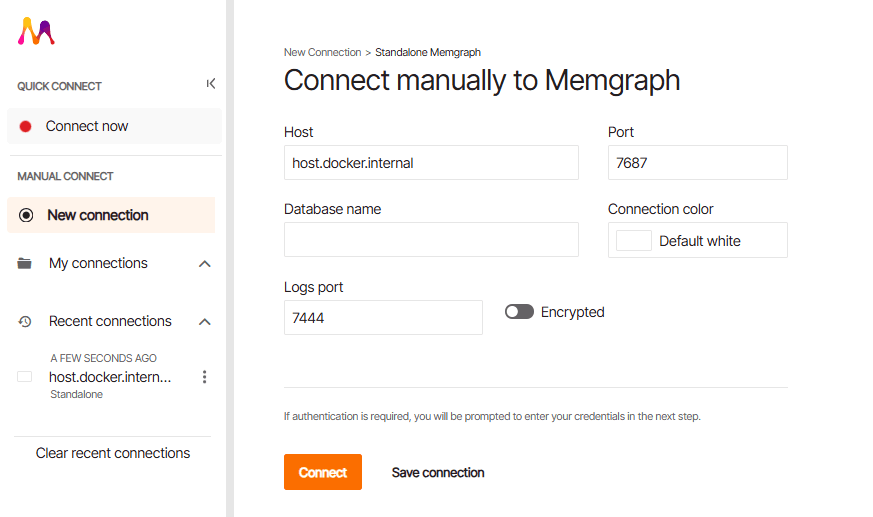

You can also connect to Memgraph using the Memgraph Lab web application available within the memgraph-platform Docker image by visiting localhost:3000.

To start using Memgraph in your application, use one of the client libraries and follow their getting started guide.

Running individual tools from Memgraph Platform image

You can run only the Memgraph database instance from the Memgraph Platform image using the following command:

docker run -p 7687:7687 memgraph/memgraph-platform -c /etc/supervisor/supervisord-memgraph-only.conf

You can run only mgconsole web application from the Memgraph Platform image using the following command in Linux:

docker run -it --entrypoint=mgconsole memgraph/memgraph-platform

You can run only mgconsole web application from the Memgraph Platform image using the following command in Windows and macOS:

docker run -it --entrypoint=mgconsole memgraph/memgraph-platform --host host.docker.internal

You can run only the Memgraph Lab web application from the Memgraph Platform image using the following command:

docker run -p 3000:3000 memgraph/memgraph-platform -c /etc/supervisor/supervisord-lab-only.conf

Stop and start the instance

You can stop the instance with docker stop memgraph.

You can restart the instance with docker start memgraph

Other available Docker images

All Memgraph Docker images are availble at Memgraph's Docker Hub (opens in a new tab). There you will find the exact Docker image tags you can use to install Memgraph with.

when you're developing or if you're new to Memgraph we recommend using the memgraph-platform image. Once you're ready to go to production you can choose to use the memgraph-mage Docker image that includes the database and the graph library, or just run the database using the memgraph image.

The main repositories are:

  • memgraph/memgraph-platform includes Memgraph database, command-line interface mgconsole, MAGE graph algorithms library and Memgraph Lab web interface
    • memgraph/memgraph-platform also includes a version of image without the graph algorithms library MAGE (look for the tag using only memgraph and lab keywords).
  • memgraph/memgraph-mage includes Memgraph database, command-line interface mgconsole and MAGE graph algorithms library
  • memgraph/memgraph includes Memgraph database and command-line interface mgconsole

Install Memgraph using other Docker images

To install Memgraph from any image, you need to adjust the docker run command in Step 2.

memgraph/memgraph-mage + cuGraph have a specific installation process.

memgraph/memgraph-platform without MAGE

Install and run the memgraph-platform image that doesn't include MAGE using the following command:

docker run -p 7687:7687 -p 7444:7444 -p 3000:3000 --name memgraph memgraph/memgraph-platform:2.10.2-memgraph2.10.1-lab2.8.1

Check the latest versions at Memgraph's Docker Hub (opens in a new tab).

You can connect to the Memgraph instance using the command-line interface mgconsole by running the following command in a new terminal:

docker exec -it memgraph mgconsole

You you can also connect to Memgraph using the Memgraph Lab web application available within the memgraph-platform Docker image by visiting localhost:3000.

To start using Memgraph in your application, use one of the client libraries and follow their getting started guide.

memgraph/memgraph-mage

Install and run the memgraph-mage image using the following command:

docker run -p 7687:7687 -p 7444:7444 --name memgraph memgraph/memgraph-mage

You can connect to the Memgraph instance using the command-line interface mgconsole by running the following command in a new terminal:

docker exec -it memgraph mgconsole

You can also connect to Memgraph instance using the Memgraph Platform desktop application, available for download from Memgraph's Download Hub (opens in a new tab).

To start using Memgraph in your application, use one of the client libraries and follow their getting started guide.

memgraph/memgraph-mage + cuGraph

Check prerequisites

To be able to run cuGraph analytics, make sure you have compatible infrastructure first. The exact system requirements are available at the NVIDIA RAPIDS site (opens in a new tab), and include an NVIDIA Pascal (or better) GPU and up-to-date CUDA & NVIDIA drivers.

You will also need to install:

Install and run Memgraph

Install and run Memgraph using the following command:

docker run --rm --gpus all -p 7687:7687 -p 7444:7444 memgraph/memgraph-mage:1.3-cugraph-22.02-cuda-11.5

Check the latest versions of cuGraph Docker images at Memgraph's Docker Hub (opens in a new tab), by searching the memgraph/memgraph-mage repository with the cugraph keyword.

You can connect to the Memgraph instance using the command-line interface mgconsole by running the following command in a new terminal:

docker exec -it memgraph mgconsole

You can also connect to Memgraph instance using the Memgraph Platform desktop application, available for download from Memgraph's Download Hub (opens in a new tab).

To start using Memgraph in your application, use one of the client libraries and follow their getting started guide.

memgraph/memgraph

Install and run the memgraph image using the following command:

docker run -p 7687:7687 -p 7444:7444 --name memgraph memgraph/memgraph

You can connect to the Memgraph instance using the command-line interface mgconsole by running the following command in a new terminal:

docker exec -it memgraph mgconsole

You can also connect to Memgraph instance using the Memgraph Platform desktop application, available for download from Memgraph's Download Hub (opens in a new tab).

To start using Memgraph in your application, use one of the client libraries and follow their getting started guide.

Configuration options

To learn about all the configuration options, check out the configuration settings.

When using Docker, you can specify the configuration options in the docker run command:

docker run -p 7687:7687 -p 7444:7444 -p 3000:3000 -e MEMGRAPH="--log-level=TRACE" memgraph/memgraph-platform

When working with Memgraph Platform, you should pass configuration flags inside of environment variables, while all the other Docker images use regular configuration flags.

For example, you can start the memgraph image with docker run memgraph/memgraph --bolt-port=7687 --log-level=TRACE, but you should start the memgraph-platform with docker run -p 7687:7687 -p 7444:7444 -p 3000:3000 -e MEMGRAPH="--bolt-port=7687 --log-level=TRACE" memgraph/memgraph-platform.

Troubleshooting

Issues with loading Memgraph

docker load -i memgraph.tar.gz

Error during connect:
This error may indicate that the docker daemon is not running.

Run the Docker Desktop application and wait for it to load fully.

Error response from daemon:
open \\.\pipe\docker_engine_linux: The system cannot find the file specified.

Reload the Docker Desktop application and wait for it to load fully.

Unsupported OS Linux

You need to download the Windows Subsystem for Linux (opens in a new tab), and enable experimental features in Docker Desktop, under Settings -> Docker Engine, change experimental to true.

Issues when connecting to Memgraph

docker run memgraph/memgraph-platform

While this command will start a Memgraph instance, not publishing the port will cause problems when trying to connect to the database via Memgraph Lab or mgconsole. To avoid this, you should publish the container's port to the host using the -p flag and by specifying the port:

docker run -p 7687:7687 -p 7444:7444 -p 3000:3000 memgraph/memgraph-platform

Issues with connecting mgconsole to the database

docker run -it --entrypoint=mgconsole memgraph/memgraph-platform --host HOST

Although unlikely, sometimes there are issues with connecting mgconsole to the Docker Container’s IP address because it is running on a custom IP rather than localhost. This problem is most often accompanied with the following error:

Connection failure: Couldn't connect to 127.0.0.1:7687!

To fix this issue, just replace HOST from the first command with host.docker.internal. To find out more about networking in Docker, take a look at Networking features in Docker Desktop for Windows (opens in a new tab) guide or Mac (opens in a new tab) guide .

Issues with the IP address

Although unlikely, some users might experience minor difficulties after the Docker installation. Instead of running on localhost, a Docker container for Memgraph may be running on a custom IP address. Fortunately, that IP address can be found as follows:

1. Determine the ID of the Memgraph Container by issuing the command docker ps. The user should get an output similar to the following:

CONTAINER ID    IMAGE       COMMAND                  CREATED
9397623cd87e    memgraph    "/usr/lib/memgraph/m…"   2 seconds ago

At this point, it is important to remember the container ID of the Memgraph Image. In our case, that is 9397623cd87e.

2. Use the this ID to retrieve the IP address of the Container:

docker inspect -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}' 9397623cd87e

The command above will yield the IP address that should be used when connecting to Memgraph via Memgraph Lab or mgconsole. Just replace HOST from the following command with the appropriate IP address:

docker run -it --entrypoint=mgconsole memgraph/memgraph-platform --host HOST

Work with Docker

If you are new to Docker, this guide will help you get a grasp of Docker and make it easier to accomplish tasks within Memgraph. After installing Docker, all commands are run from the command-line tool of your preference.

Download the Memgraph Docker image

Images are downloaded using the docker pull command followed by the name of the Docker image. When you're developing or if you're new to Memgraph we recommend using the memgraph-platform image. It includes the database and all the tools you might need to analyze your data, such as command-line interface mgconsole, web interface Memgraph Lab and a complete set of algorithms within a MAGE library.

To download the latest Memgraph Platform image, run:

docker pull memgraph/memgraph-platform

All Memgraph Docker images are availble at Memgraph's Docker Hub (opens in a new tab). There you will find exact Docker image tags you can download and use to install Memgraph with.

Once you're ready to go to production you can choose to use the memgraph-mage Docker image that includes the database and the algorithms, or just run the database using the memgraph image.

Architecture of Docker container running Memgraph

The picture below shows the architecture of the Memgraph Docker ecosystem.

Run a Memgraph Docker image

All images are started using the docker run command followed by various flags, environment variables and configuration options.

The most common flags used while running Memgraph images are:

  • publish ports: -p 3000:3000
  • container name: --name memgraph
  • set up configuration using environment variables in the case of the memgraph-platform image, or configuration flags using the memgraph or memgraph-mage image

A docker run command can look like this:

docker run -p 7687:7687 [-p host_port:container_port] [--name container_name] [configuration] memgraph/image_name

Publish ports

Ports are published in order to allow services outside the container to be able to connect to the container. When publishing ports, you need to define two ports separated by a colon. The left side port stands for the host port and the right side port is the container port.

The most common ports published while running Memgraph are:

  • -p 7687:7687 - connection to the database instance (the Bolt protocol uses this port by default)
  • -p 3000:3000 - connection to the Memgraph Lab application when running Memgraph Platform
  • -p 7444:7444 - connection to fetch log files from Memgraph Lab (only in version 2.0 and newer)

For example, if you are running two instances using the memgraph-platform image and you want to connect to both instances using the Memgraph Lab in-browser application. You would run the first instance with:

docker run -p 7444:7444 -p 3000:3000 memgraph/memgraph-platform

Because port 7444 and 3000 are now taken, you need to change the left side ports (host ports):

docker run -p 7445:7444 -p 3001:3000 memgraph/memgraph-platform

To connect to the first instance, you should open Memgraph Lab in your browser at localhost:3000, but the second instance is reachable at localhost:3001.

Container name

Upon creation, each container gets an ID. You can find out the container ID by running the docker ps command, but you can also name the container using the --name flag. Defining a name can be a handy way to add meaning to a container. If you specify a name, you can use it when referencing the container within a Docker network.

Set up the configuration

If you want a certain configuration setting to be applied during a single run, you need to pass the configuration option within the docker run command instead of changing the configuration file.

If you are working with the memgraph-platform image, you should pass configuration options with environment variables.

For example, if you want to limit memory usage for the whole instance to 50 MiB and set the log level to TRACE, pass the configuration like this:

docker run -p 7687:7687 -p 3000:3000 -p 7444:7444 -e MEMGRAPH="--memory-limit=50 --log-level=TRACE" memgraph/memgraph-platform

When you are working with memgraph or memgraph-mage images, you should pass configuration options as arguments.

For example, if you want to limit memory usage for the whole instance to 50 MiB and set the log level to TRACE, pass the configuration argument like this:

docker run -p 7687:7687 memgraph/memgraph --memory-limit=50 --log-level=TRACE

Specify volumes

Specifying a volume syncs the specified directory inside the Docker container as a local directory and serves for durability. The -v flag is followed by the name of the local directory separated from the path of the volume in the container by a semicolon:

-v volume_name:volume_path

Named volumes handle data permissions so there shouldn't be any issue with data permissions.

Useful volumes you can specify while running Memgraph are:

  • -v mg_lib:/var/lib/memgraph - directory containing data, enables data persistency
  • -v mg_log:/var/log/memgraph - directory containing log files
  • -v mg_etc:/etc/memgraph - directory containing the configuration file

The exact location of the local directories depends on your specific setup.

The configuration file can usually be found at /var/lib/docker/volumes/mg_etc/_data/memgraph.conf but you can also copy the file from the Docker container, modify it and copy it back into the container.

The logs will be saved to the mg_log volume, and the directories can usually be found in /var/lib/docker/volumes/, but you can also view them in the Memgraph Lab 2.0 (or newer) by publishing the port 7444.

Specify bind mounts

Bind mounts are local directories or files that can be modified by other processes other than Docker. Any changes made to these directories or files locally will be reflected inside the Docker container and vice-versa. Also, a bind mount will overwrite the content of the Docker container.

For example, if I have a Data directory on my C: disk, and I want to access it from inside the container at /usr/lib/memgraph/data, I would run Docker with the following -v flag.

docker run -p 7687:7687 -p 7444:7444 -p 3000:3000  -v "C:/data":/usr/lib/memgraph/data memgraph/memgraph-platform

You can use bind mounts to transfer durability files such as snapshot or WAL files inside the container to restore data, or CSV files you will use to import data with CSV LOAD clause.

Bind mounts do not handle data permissions which could cause issues with permissions.

Stop container

Database instances are stopped by stopping the Docker container with the command docker stop. To stop a container you need to know the container's ID or name.

You can list all the containers you want to stop in one docker stop command:

docker stop CONTAINER1_ID CONTAINER2_ID CONTAINER3_NAME

Start container

If you want to start a stopped container, list them using the following command:

docker ps -a

Then start the container with:

docker start <CONTAINER_ID>

or

docker start <CONTAINER_NAME>

Retrieve a Docker container ID

Run the following command:

docker ps

You should get an output similar to this:

CONTAINER ID   IMAGE                        COMMAND                  CREATED        STATUS        PORTS                                                                    NAMES
45fa0f86f826   memgraph/memgraph-platform   "/bin/sh -c '/usr/bi…"   21 hours ago   Up 21 hours   0.0.0.0:3000->3000/tcp, 0.0.0.0:7444->7444/tcp, 0.0.0.0:7687->7687/tcp   admiring_almeida

You can shorten this ID to 4 letters if the ID remains unique, for example, 45fa.

Retrieve a Docker container IP address

To retrieve the Docker container IP address, first, you need to retrieve its ID or use its name.

Then run the following command if the container ID is 9397623cd87e.

docker inspect -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}' 9397623cd87e

Browse files inside a Docker container

To browse files inside a Docker container, first, you need to retrieve its ID or use its name.

Then run the following command if the container ID is 9397623cd87e:

docker exec -it 9397623cd87e bash

To navigate through the container, use the following commands:

  • ls - list all the directories and files
  • cd <directory> - enter a directory
  • cd .. - leave the directory
  • cat <file> - list the content of a file

You don't have to write file and directory names in full, once you write enough letters to have a unique string, press the <TAB> key.

Copy files from and to a Docker container

To copy files from and to the Docker container, first, you need to retrieve its ID or use its name.

  1. Place yourself in the local directory where you want to copy the file.

  2. Copy the file from the container to your current directory with the command:

docker cp <CONTAINER ID>:<path_in_container> <local_file_name>

Be sure to replace the <CONTAINER ID> parameter.

The example below will copy the configuration file to the user's Desktop:

C:\Users\Vlasta\Desktop>docker cp bb3de2634afe:/etc/memgraph/memgraph.conf memgraph.conf
  1. Copy the file from your current directory to the container with the command:
docker cp  <local_file_name> <CONTAINER ID>:<path_in_container>

Be sure to replace the <CONTAINER ID> parameter.

The example below will replace the configuration file with the one from the user's Desktop:

C:\Users\Vlasta\Desktop>docker cp memgraph.conf bb3de2634afe:/etc/memgraph/memgraph.conf
